Project Summary

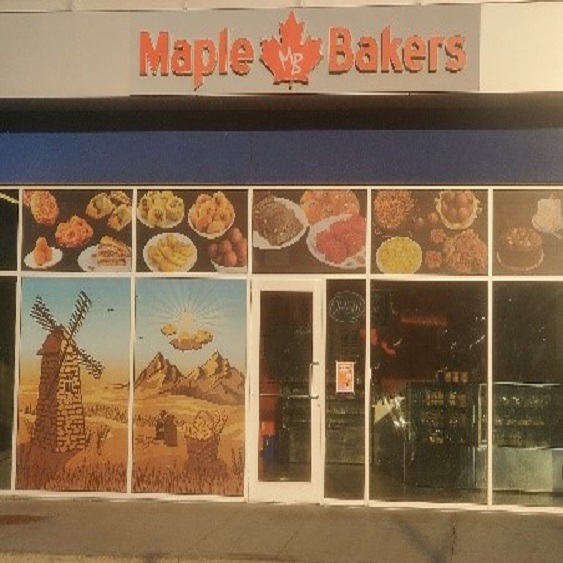

Maple Bakers is a new bakery located on Calgary Trail in Edmonton. They specialize in traditional south Indian-inspired pastries. Lexus Engineering provided mechanical and electrical design services for this start-up’s retail unit at the new South Trail Plaza.

Project Goals

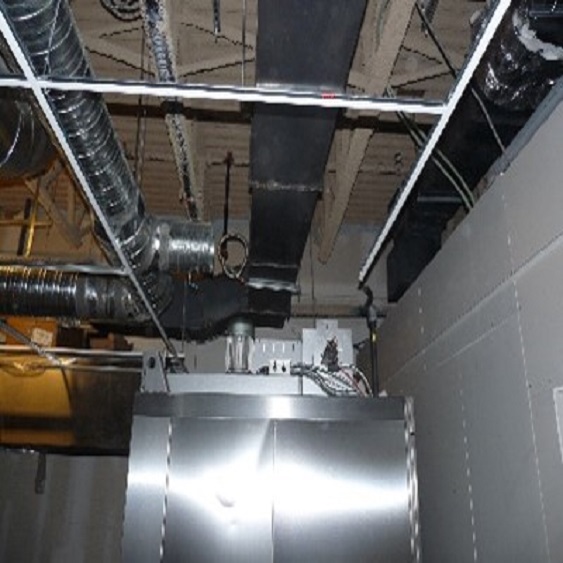

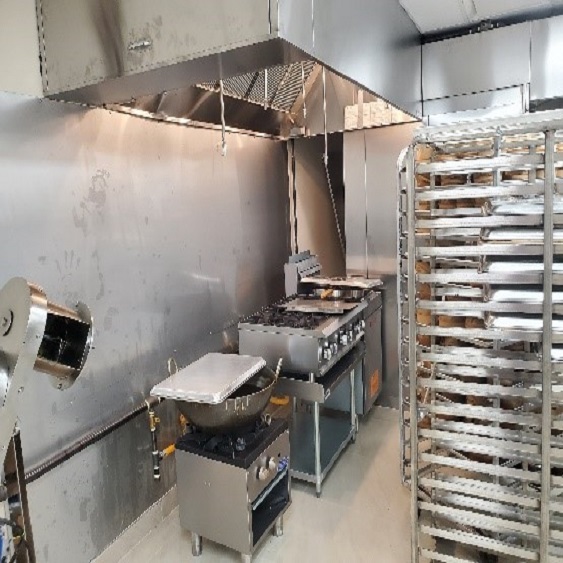

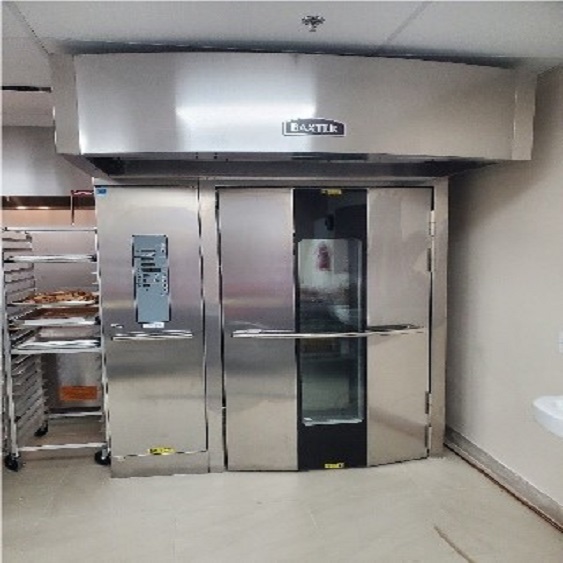

A key challenge on the mechanical design side was the various kitchen equipment needed for this business, such as the pastry oven, which had to be independently vented to the outdoors using Type 1 welded ‘grease’ duct. This was in addition to the usual fryers, griddles, and stoves found under a kitchen hood in a restaurant. The prospect of routing all this ductwork to the outdoors was further complicated by the presence of the second-floor of tenants in this building. Meaning that a direct penetration to the roof was not possible.

Our Solution

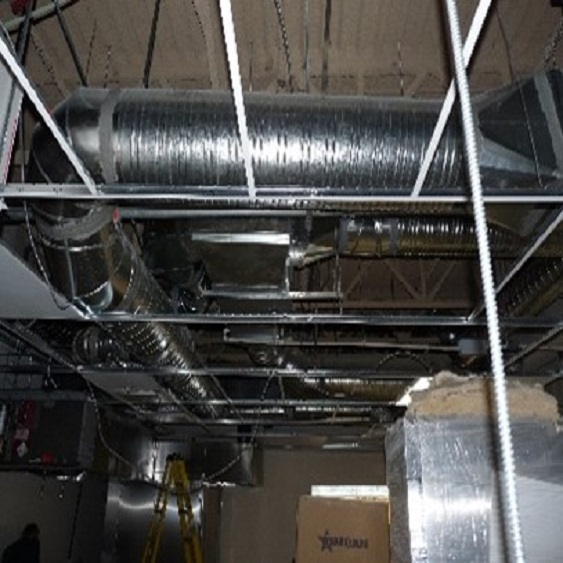

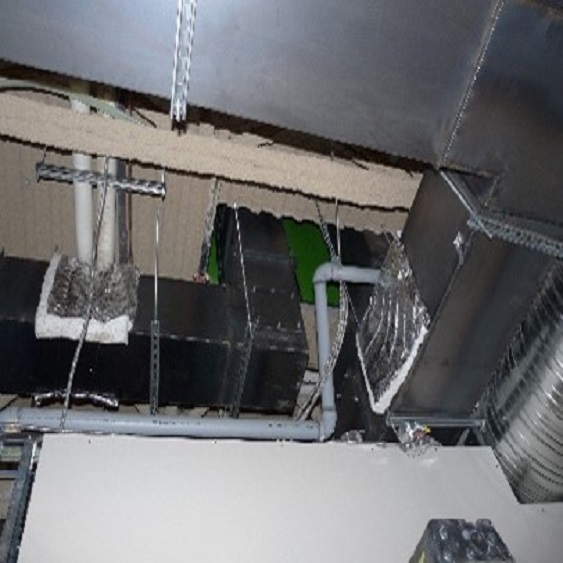

Although a shaft through the second floor to the roof was allocated during the original building construction, it was determined to be too small to fit the large new ducts. In coordination with the upstairs tenant, a second shaft was built, and all ductwork was carefully measured and sized to allow for safe and efficient venting.

Lexus Engineering also designed the electrical distribution, lighting, Fire Alarm, and plumbing.

Result

Although this project experienced many setbacks, and construction took longer than usual, Lexus Engineering was there every step of the way to ensure a successful project and an attractive new business in Edmonton.

Code: NBC2019AE, NECB2017, NPC2015, NFPA96, CSAB149.1, CSAC22.1, CAN-ULC S537
